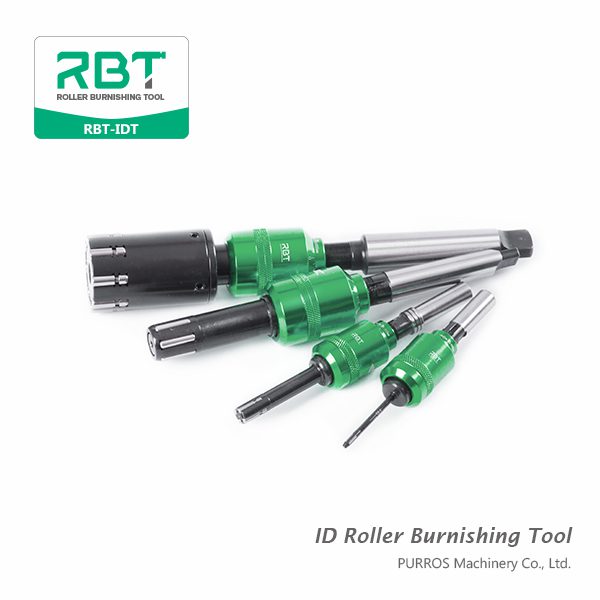

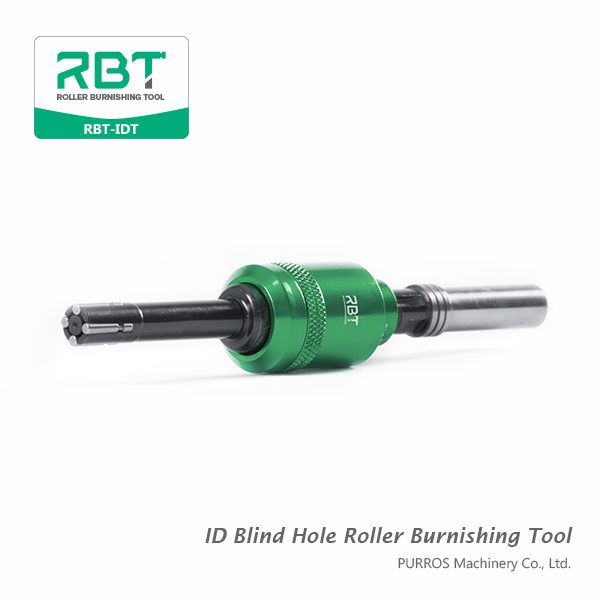

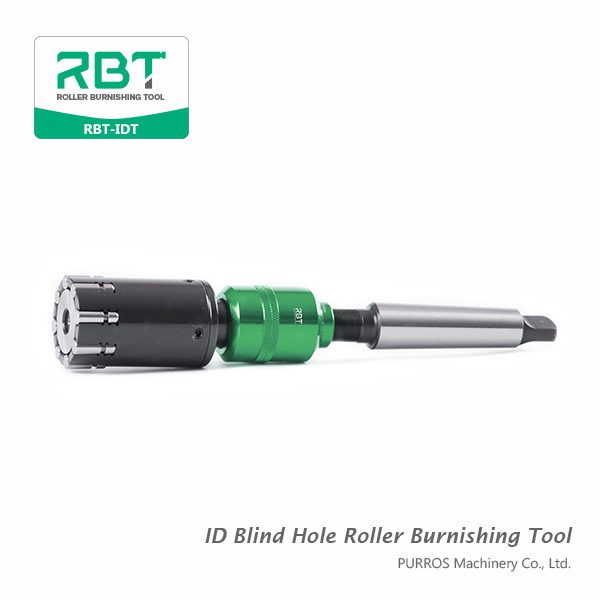

ID Blind Roller Burnishing Tools, ID Blind Hole Roller Burnishing Tools Manufacturer & Exporter & Supplier

Description

Features & Benefits:
Accurate sizing
Fast cycle time
Eliminate secondary operations

Metallurgical improvements:
Work hardening
Resistant to fatigue failure
Corrosion resistance

Specifications:
Can be run on almost any machine tool either the tool or work piece can rotate.
Flood coolant is required.

ID Blind Hole Roller Burnishing Tool Size

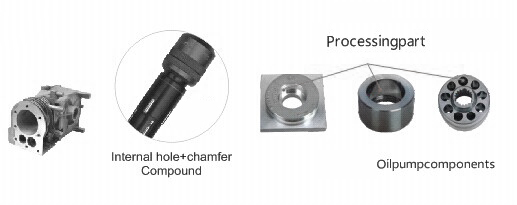

ID Blind Hole Roller Burnishing Tools Processing

ID Blind Hole Roller Burnishing Tool Specifications

Unit (mm)

Roller dia.	Turning range (A)	Needle roller dia. & grain No.	Aluminum shell dia. (D)	Processing length	Length of the standard (L3)	Optional handle model
RBT-IDB8.0-8.8	-0.1~ 0.2	3*15 (3)	GA1φ36	55	125	Straight φ12 Morse 2#/3#
RBT-IDB8.9-11.8		3*15 (4)
RBT-IDB11.9-14.8	-0.1~ 0.25	4*15 (4)	GA2φ40	65	135	Straight φ12 Straight φ16 Morse 2# Morse 3#
RBT-IDB14.9-21.8	-0.1~ 0.3	5*20 (4)
RBT-IDB21.9-25.3		5*20 (6)
RBT-IDB25.4-31.8		5*20 (6)		80	155
RBT-IDB31.9-39.8		5*20 (8)
RBT-IDB39.9-47.8	-0.1~ 0.4	7*20 (8)	GA3φ46
RBT-IDB47.9-54.8		7*20 (8)		150	150	Straight φ16 Straight φ20 Morse 3# Morse 4#
RBT-IDB54.9-69.8	-0.1~ 0.5	10*30 (8)	GA4φ60.5
RBT-IDB69.9-85.8		10*30 (10)
RBT-IDB85.9-119.8		10*30 (12)
RBT-IDB119.9-149.8	-0.1~ 0.7	10*30 (14)	GA5φ70.5			Morse 4# Morse 5#
RBT-IDB149.9-179.8		10*30 (16)		180	180
RBT-IDB179.9-199.8		15*38 (16)	GA6φ120
RBT-IDB199.9-220.8		15*38 (18)



Unit (mm)

Straight shank (L1)	Type*Length	Morse Taper shank (L2)	Type*Length	Tool Length
	φ12*32		2#*78.5	Straight shank L1 L3	Morse shank L2 L3
	φ16*32		3#*98
	φ20*50		4#*123
	φ25*50		5#*155.5
	φ32*50		6#*217.5
	φ40*50



ID Blind Hole Roller Burnishing Tool Application

Driving units
Drilling machine
Drilling unit
Lathe
Machine center
Pillar drill (Bench drill)
