Description

One Simple Setscrew Adjustment

Controls Depth of Cutting

Releases Blade for Hand Replacement



Simple-piece Deburring Tools – Universal Deburring Tools

Economical deburring tool of holes for the front, back or both sides in one pass.

Specifications of Deburring Tools



Unit (mm)

Tool Model	RANGE HOLE SIZES	ARBOR DIAMETER(C)	OVERALL LENGTH(L)	DIMENSION (a)	DIMENSION (b)	DIMENSION (D)	ROTATE SPEED(RPM)
RBT-DT-0.8	0.8-0.9	0.7	45	1	1.5	1.05	1800
RBT-DT-0.9	0.9-1.0	0.8	45	1	1.5	1.2	1800
RBT-DT-1.0	1.0-1.1	0.9	45	1	1.5	1.35	1800
RBT-DT-1.1	1.1-1.2	1.0	45	1	1.5	1.5	1800
RBT-DT-1.2	1.2-1.3	1.1	45	1	1.5	1.65	1800
RBT-DT-1.3	1.3-1.4	1.2	45	1	1.5	1.8	1800
RBT-DT-1.4	1.4-1.5	1.3	45	1	1.5	1.95	1800
RBT-DT-1.5	1.5-1.6	1.5	50	2	2.5	2.1	1500
RBT-DT-1.6	1.6-1.7	1.5	50	2	2.5	2.25	1500
RBT-DT-1.7	1.7-1.8	1.6	50	2	2.5	2.4	1500
RBT-DT-1.8	1.8-1.9	1.7	60	2	2.5	2.55	1500
RBT-DT-1.9	1.9-2.0	1.8	60	2	2.5	2.65	1500
RBT-DT-2	2.0-2.2	1.9	60	2	2.5	2.8	1500
RBT-DT-4	2.2-2.4	2.1	80	2	2.5	3.15	1500
RBT-DT-5	2.4-2.6	2.3	80	2	2.5	3.45	1500
RBT-DT-6	2.6-2.8	2.5	80	2	2.5	3.7	1500





Unit (mm)

Tool Model	RANGE HOLE SIZES	ARBOR DIAMETER(d)	OVERALL LENGTH(L)	DIMENSION (a)	DIMENSION (b)	DIMENSION (D)	ROTATE SPEED(RPM)
RBT-DT-7	2.80-3.18	2.75	101.6	3.18	4.45	4.00	1200
RBT-DT-8	3.18-3.56	3.15	101.6	3.18	4.45	4.34	1200
RBT-DT-9	3.56-3.96	3.58	101.6	3.18	4.45	4.75	1200
RBT-DT-10	3.96-4.37	3.94	101.6	3.18	4.45	5.54	1200
RBT-DT-11	4.37-4.78	4.34	101.6	3.18	4.45	5.94	1200
RBT-DT-12	4.75-5.16	4.72	101.6	3.18	6.22	6.35	1200
RBT-DT-13	5.16-5.56	5.13	101.6	3.18	6.22	6.78	1200



Unit (mm)

Tool Model	RANGE HOLE SIZES	ARBOR DIAMETER(d)	OVERALL LENGTH(L)	DIMENSION (a)	DIMENSION (b)	DIMENSION (D)	ROTATE SPEED(RPM)
RBT-DT-14	5.56-5.94	5.54	101.6	6.48	6.22	7.92	800-1000
RBT-DT-15	5.94-6.35	5.92	101.6	6.48	6.22	8.33	800-1000
RBT-DT-16	6.35-6.76	6.32	101.6	6.48	6.22	8.71	800-1000
RBT-DT-17	6.76-7.14	6.73	101.6	6.48	6.22	9.12	800-1000
RBT-DT-18	7.14-7.54	7.11	101.6	6.48	6.22	9.53	800-1000
RBT-DT-19	7.54-7.95	7.52	101.6	7.24	6.48	9.91	800-1000
RBT-DT-20	7.95-8.33	7.92	101.6	7.24	6.48	10.31	800-1000
RBT-DT-21	8.33-8.74	8.31	101.6	7.24	6.48	10.72	800-1000
RBT-DT-22	8.74-9.12	8.69	101.6	7.24	6.48	11.10	800-1000
RBT-DT-23	9.12-9.53	9.09	101.6	7.24	6.48	11.51	800-1000
RBT-DT-24	9.53-9.93	9.50	112.7	8.00	6.48	12.70	800-1000
RBT-DT-25	9.93-10.31	9.88	112.7	8.00	6.48	13.08	600

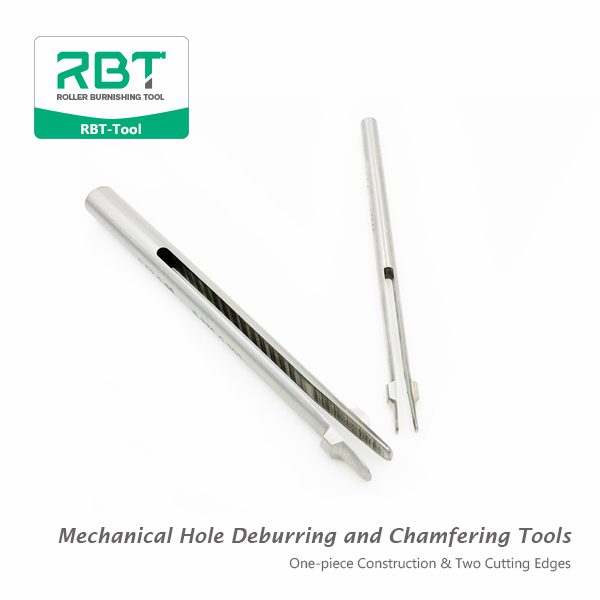

The Simple-piece Deburring Tool is a simple one-piece construction, but is designed for high-production, automated deburring operations. The open-slot design allows chips to clear easily, which suits for automated processes in series machines. The Simple-piece Deburring Tool can be deburred the front, back, or both sides of holes in one fast pass with long service life.



How RBT universal deburring tools works?





1. Feed-in

Integrated cutting edges remove the burr from the front of the hole as the tool enters the hole. The tool deburrs the hole under spring pressure.

2. Feed-thru

During passing through the bore, the cutting edge is pushed under spring tension into the tool; the slotted design allows the tool to shrink under load as the tool feeds through the workpiece. (The crowned and polished top surface of the cutting edges will not mar the inside surface of the hole)

3. Feed-out

In the work feed backwards the back of the hole is deburred.
As the return stroke of deburring tool, the hole is deburred on the back side.

Features:

• Easy to use on all machines
• Changing the direction of rotation is not needed
• Effective tool, can be regrounded up to 4 times
• Nochip congestion through the open slot design
• Fromdeburring Ø 56 mm with 2 cutting edges
• Deburring thickness can be adjusted through the adjusting screw
• Standard toolsfrom Ø 57 mm to 16.28 mm from stock
