R Single Roller Burnishing Tool used to surface finish cylinder liner (Radius Shaped)

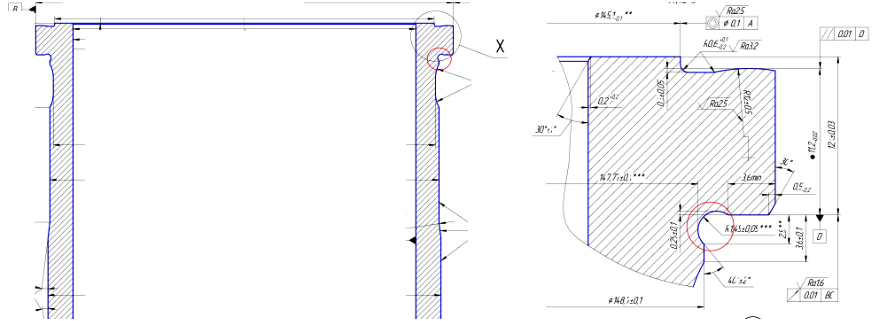

One of RBT’s customer wants to find out a solution to surface finish the face of cylinder liner, where are with radius shaped (R1.4±0.05mm). And the material is gray cast iron with hardness of 230-277HB. Also the customer wants the tool can be used on existing CNC lathe turret, which size is square 25*25mm. One more requirement, wants there has a feed rate gauge on the tool to real-time monitoring whether it is overloaded or not? The drawing of workpiece as below:

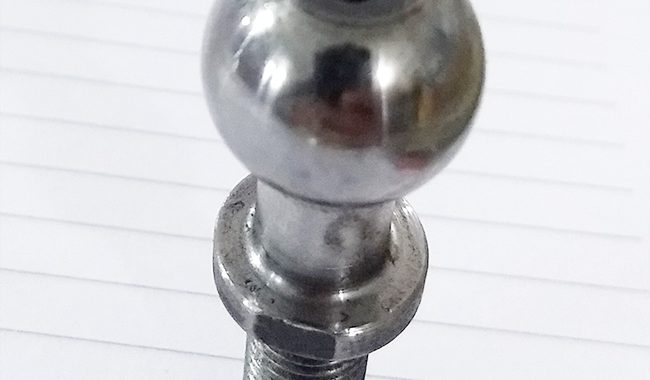

www.rbtburnishingtool.com R Single Roller Burnishing Tool used for finishing Sphere workpiece, Sphere Roller Burnishing Tool, Ball Roller Burnishing Tool, Sphere Roller Burnishing Tool Manufacturer, Metal Sphere Burnishing Tool

R Single Roller Burnishing Tool used for finishing Sphere workpiece, Sphere Roller Burnishing Tool, Ball Roller Burnishing Tool, Sphere Roller Burnishing Tool Manufacturer, Metal Sphere Burnishing Tool

In response to the needs of customers, RBT came up with own solution, that we advise customer use RBT’s R Single Burnishing Tool to meet his requirement. The R Single Burnishing Tool can be used to polishing all kinds of radii and spheres workpiece, the roller angle can be adjusted according to the actual processing situation, and with a measuring gauge the monitor the feed rate is overloaded or not.

Single Roller Burnishing Tools, OD Roller Burnishing Tool, Single Roller Burnishing Tool with Feed Rate Gauge, Single Burnishing Tool for Radius, Sphere Single Roller Burnishing Tools, Universal Roller Burnishing Tools, Single Roller Burnishing Tools Manufacturer, Single Roller Burnishing Tools Supplier, Cheap Single Roller Burnishing Tools, Surface Polishing Burnishing Tool, Outer Diameter Roller Burnishing Tool

Adjusted Angle Single Roller Burnishing Tools, Arbitrary Angle Single Roller Burnishing Tools, Adjusted Angle Range of Single Roller Burnishing Tool, Single Roller Burnishing Tool 0-90°

Characteristics and performance of single roller burnishing tool

External groove single rolling type

Precise processing for external groove, such as external sealing ring of shafts and cylinder. Through changing rolling wheel shape, the tool may process external diameter with large size, prick, end, and R section.

Internal groove single rolling type

Precision inner groove rolling process for inner hole, used on lathe, such as inner groove sealing ring of oil cylinder.

By changing the shape of the roller, the groove of different shapes and the end face of inner diameter can be processed, such as inner sealing groove surface, R surface (inner R and outer R), inclined surface and so on for burnishing rolling.

Single Roller Burnishing Tools (Carbide / HSS) Manufacturer, Exporter & Supplier

Single roller burnishing tool’s performance:

This tool can be used on general lathes, CNC series machine tools, processing centers and other equipment.
It is applicable to the processing of outer groove and inner groove of all kinds of metal parts with hardness less than HRC40.
Machining scope: the minimum groove width is 1.0mm, the groove depth is less than 20MM, the outer groove width is unlimited, and the hole diameter of the inner hole is greater than 25mm.
After one-time processing, the surface roughness of the parts can reach ra0.2um.
It can also be customized according to user requirements and machine tool specifications.

Operation method of single roller burnishing tools:

Select the appropriate external groove single roller burnishing tools and internal groove single roller burnishing tools, and attach the tool mounting clamping part to the tool holder of the machine tool equipment.
Make tool head fit with workpiece axis and groove center.
The design of external groove single roller burnishing tools is equipped with a spring pressure regulating device, whose floating range is between 0.2mm and 0.4mm.
For the best effect, please choose the appropriate roll pressure.

How to use groove single roller burnishing tool?

Single Roller Burnishing Tool:

External groove single roller tool with built-in pressure regulator (with elastic force). It is installed on the lathe for precision processing in the external groove, and is often used for shaft, cylinder seal ring and other processing.

Groove single roller tool can process the shape of different grooves by changing the shape of the wheel, such as outer sealing groove surface, R surface (inner R and outer R), inclined surface and so on.

Single Roller Burnishing Tool, Single Roller Burnishing Tools Manufacturer, Single Roller Burnishing Tools Supplier, Single Roller Burnishing Tool for Sale, Cheap Single Roller Burnishing Tool, Roller Burnishing Tools

How to use groove single roller burnishing tool?

Single Roller Burnishing Tool Operation Method:

Select the suitable outer groove rolling tool or inner groove rolling tool, and install the tool mounting clamping part on the tool holder of the machine tool equipment.
Make tool head fit with workpiece axis and groove center.
The outer groove rolling tool design is equipped with a spring pressure regulating device, whose floating range is between 0.2mm ~ 0.4mm.
For the best effect, please choose the appropriate roll pressure.
